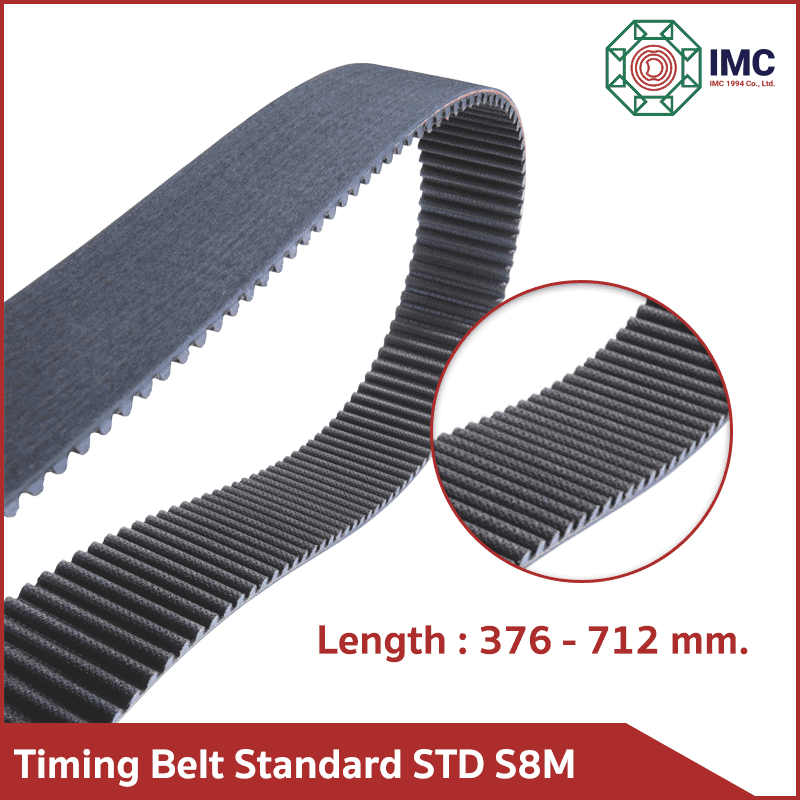

Timing Belt Standard STD S8M (Length 376 – 712mm.)
Thanks to its involute-shaped geometry, the STD profile achieves optimal meshing of the teeth in the sprocket. As a result, the STD profile also ensures very precise, low-noise operation even at high belt speeds. The profile is also available
in a double-sided version (DSTD).
Properties:
-Temperature range, depending on application,from –20 °C to +100 °C
-Conditionally resistant to oil
-Ozone-resistant
-Suitable for tropical climates
-Aging-resistant
-Suitable for reverse flexing /
reverse tensioning idlers
-Maintenance-free
| Length | STD376-S8M, STD384-S8M, STD400-S8M, STD440-S8M, STD464-S8M, STD480-S8M, STD512-S8M, STD520-S8M, STD528-S8M, STD560-S8M, STD584-S8M, STD600-S8M, STD632-S8M, STD640-S8M, STD656-S8M, STD672-S8M, STD680-S8M, STD688-S8M, STD696-S8M, STD712-S8M |
|---|---|
| Width | W 0020mm., W 0025mm., W 0030mm., W 0040mm., W 0050mm., W 0085mm., W 0115mm. |
