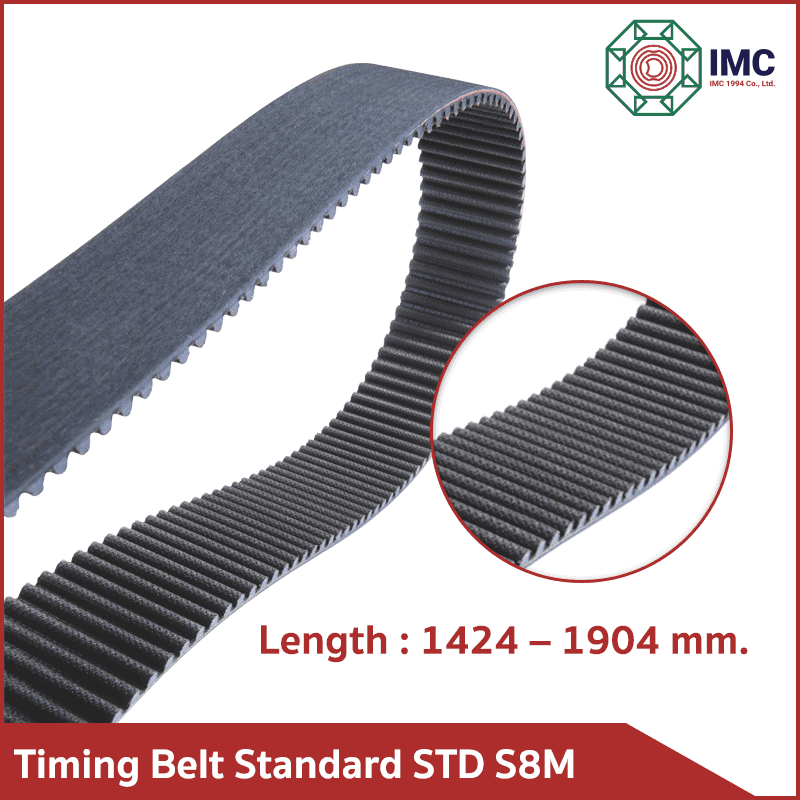

Timing Belt Standard STD S8M (Length 1424 – 1904mm.)
Thanks to its involute-shaped geometry, the STD profile achieves optimal meshing of the teeth in the sprocket. As a result, the STD profile also ensures very precise, low-noise operation even at high belt speeds. The profile is also available
in a double-sided version (DSTD).
Properties:
-Temperature range, depending on application,from –20 °C to +100 °C
-Conditionally resistant to oil
-Ozone-resistant
-Suitable for tropical climates
-Aging-resistant
-Suitable for reverse flexing /
reverse tensioning idlers
-Maintenance-free
| Length | STD1424-S8M, STD1440-S8M, STD1480-S8M, STD1512-S8M, STD1520-S8M, STD1552-S8M, STD1600-S8M, STD1624-S8M, STD1640-S8M, STD1680-S8M, STD1728-S8M, STD1760-S8M, STD1776-S8M, STD1800-S8M, STD1816-S8M, STD1824-S8M, STD1840-S8M, STD1880-S8M, STD1888-S8M, STD1904-S8M |
|---|---|
| Width | W 0020mm., W 0025mm., W 0030mm., W 0040mm., W 0050mm., W 0085mm., W 0115mm. |
