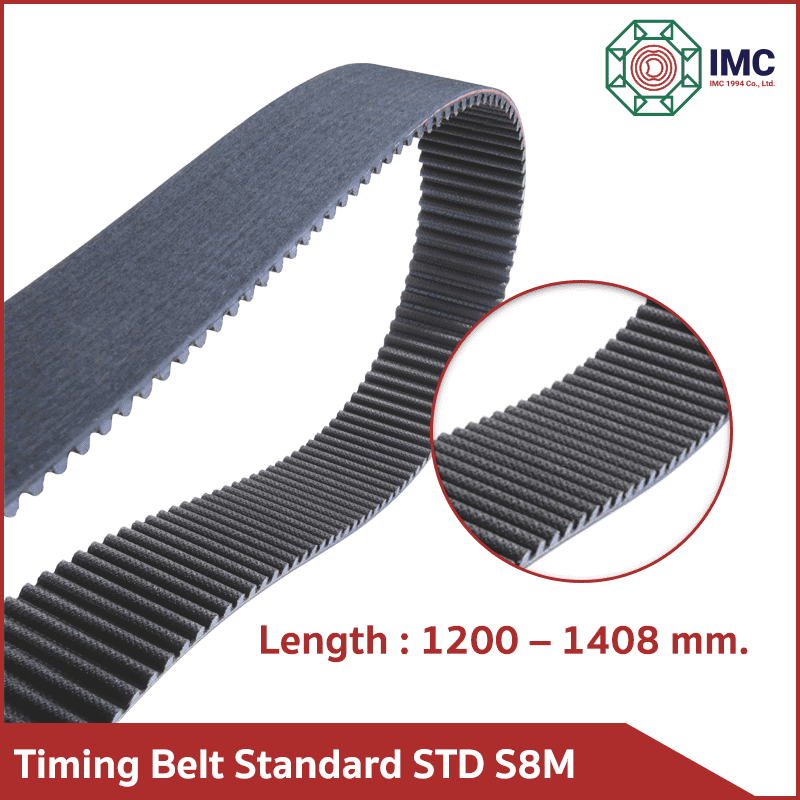

Timing Belt Standard STD S8M (Length 1200 – 1408mm.)
Thanks to its involute-shaped geometry, the STD profile achieves optimal meshing of the teeth in the sprocket. As a result, the STD profile also ensures very precise, low-noise operation even at high belt speeds. The profile is also available
in a double-sided version (DSTD).
Properties:
-Temperature range, depending on application,from –20 °C to +100 °C
-Conditionally resistant to oil
-Ozone-resistant
-Suitable for tropical climates
-Aging-resistant
-Suitable for reverse flexing /
reverse tensioning idlers
-Maintenance-free
| Length | STD1200-S8M, STD1208-S8M, STD1216-S8M, STD1224-S8M, STD1240-S8M, STD1248-S8M, STD1256-S8M, STD1264-S8M, STD1280-S8M, STD1296-S8M, STD1304-S8M, STD1312-S8M, STD1320-S8M, STD1344-S8M, STD1352-S8M, STD1360-S8M, STD1368-S8M, STD1392-S8M, STD1400-S8M, STD1408-S8M |
|---|---|
| Width | W 0020mm., W 0025mm., W 0030mm., W 0040mm., W 0050mm., W 0085mm., W 0115mm. |
