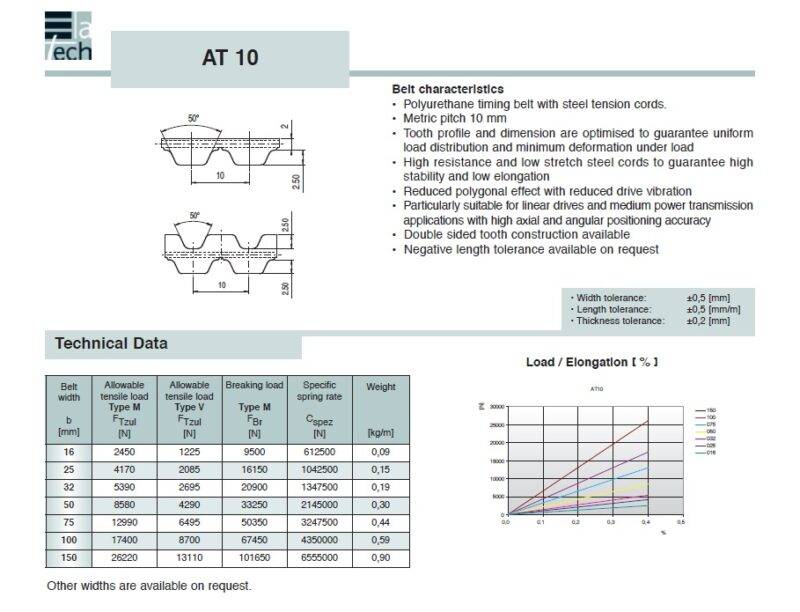

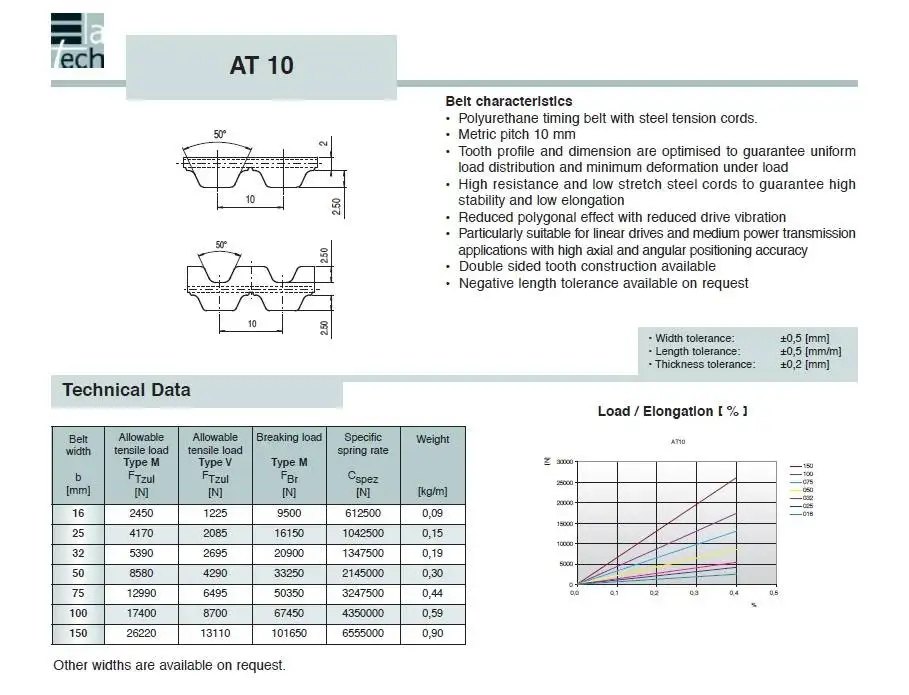

Timing Belt Open-Ended AT10
Width tolerance: +/-0.5mm
Length tolerance: +/-0.5mm
Thickness tolerance: +/-0.2mm
Properties:
• Polyurethane timing belt with steel tension cords
• Tooth profile according to ISO 17396
• Metric pitch 10 mm
• Tooth profile and dimension are optimised to guarantee uniform load distribution and minimum deformation under load
• High resistance and low stretch steel cords to guarantee high stability and low elongation
• Reduced polygonal effect with reduced drive vibration
• Particularly suitable for linear drives and medium power transmission applications with high axial and angular positioning accurary
• Double sided tooth construction available
• Negative length tolerance available on request
| Length | AT10 |
|---|---|
| Width | W 0004mm., W 0006mm., W 0008mm., W 0010mm., W 012.5mm., W 0012mm., W 0016mm., W 0020mm., W 0025mm., W 0032mm., W 0050mm., W 0050mm., W 0075mm., W 0075mm., W 052.5mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 025In/6.35mm., W 037In/9.525mm., W 050In/12.7mm., W 075In/19.05mm., W 100In/25.4mm., W 150In/38.1mm., W 200In/50.8mm., W 300In/76.2mm., W 400In/101.6mm., 600In/152.4mm., W 800In/203.2mm. |
| Type | OPEN, JOINT |
