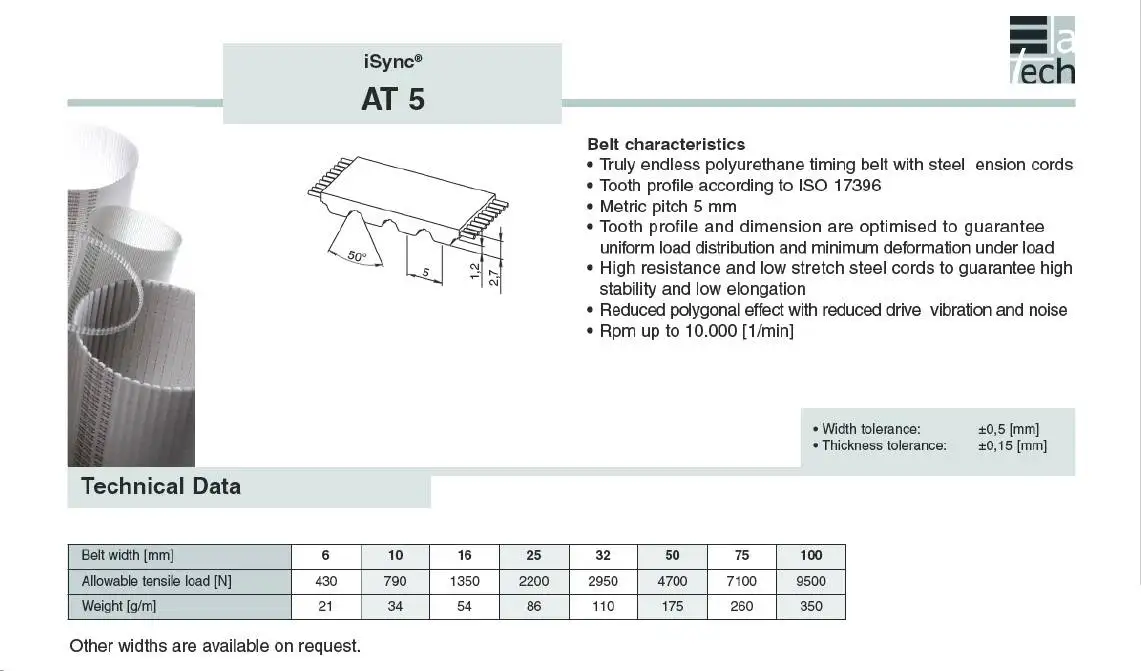

Properties:
– Truly endless polyurethane timing belt with steel tension cords
– Tooth profile according to ISO 17396
– Metric pitch 5mm
-Tooth profile and distribution and minimum deformation under load
-High resistance and low stretch steel cords to guarantee high stability and low elongation
-Reduce polygonal effect with reduced drive vibration and noise
-Allows the use of small diameter pulleys
-RPM up to 10,000 (1/min)
| Length | AT5-225mm., AT5-255mm., AT5-280mm., AT5-300mm., AT5-340mm., AT5-375mm., AT5-390mm., AT5-420mm., AT5-450mm., AT5-455mm., AT5-500mm., AT5-545mm., AT5-600mm., AT5-610mm., AT5-660mm., AT5-710mm., AT5-720mm., AT5-750mm., AT5-780mm., AT5-825mm. |
|---|---|
| Width | W 0006mm., W 0008mm., W 0010mm., W 0012mm., W 0016mm., W 0020mm., W 0025mm., W 0032mm., W 0050mm., W 0075mm., W 0100mm. |
